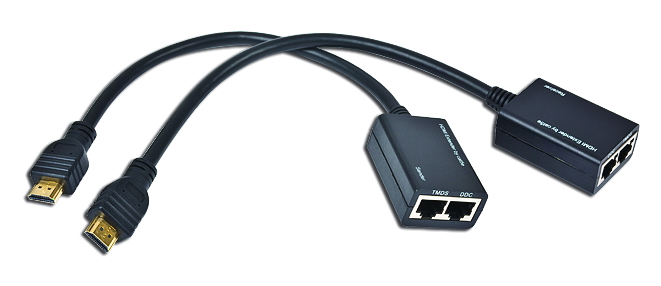

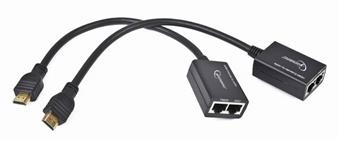

DEX-HDMI-01

HDMI extender, 30 m

  • Place your TV at 30 m distance from the HDMI source
  • Perfect digital video and high quality 3D sound
  • Uses LAN cables for the extension
  • No software and power supply required


    Allows extending HDMI signal with up to 30 m

    The digital amplifier improves the signal quality and increases the transmission distance

    Works over CAT6 or CAT5E LAN cables

    No extra HDMI cables required

    No extra power supply required

Specifications
Ports: sender unit with 2 * RJ45 connectors; receiver unit with 2 * RJ45 connectors
Interface standard: HDMI up to v.1.2a backward compatible with versions 1.0/1.1/1.2
Video formats supported: HDMI of 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
Maximal single-link resolution: 1920x1200 pixels, 1080p
Built-in HDMI cables length: 0.3 m
Net weight: 0.2 kg
Dimensions: 55 x 37 x 22 mm

System requirements
Two sets of CAT6 or CAT5E LAN cables of total length up to 30 m
Manuals
Helpdesk Email helpdesk@gembird.nl (Monday to Friday from 9:00 AM to 5:00 PM (NL time) excluding holidays)
manual DEX-HDMI-01 User Manual (1138 kb)

Package contents
Sender unit
Receiver unit
User manual
Packing details
Q'ty in crtn, pcs10
Crtn volume, CUM0.012825
Crtn weight, kgs1.2
Individual package size LxWxH:180x55x100 mm
Carton size LxWxH:300x190x225 mm
Country of originCN
Barcode8716309059459
Customs code8517620000
Packagingcolor box
