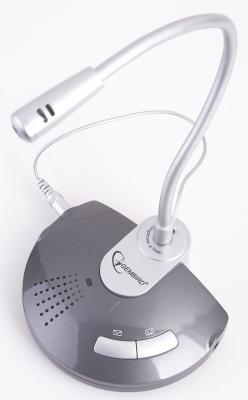

EMIC-ST

USB microphone with Line-in and Sound output

  • Now:
  • New refined look
  • Includes fully functional sound interface card. Any speakers can be connected to EMIC-ST for the high-quality sound playback.
  • Line-in jack for recording from external audio sources (tape, CD, DVD players, sound cards, etc.)
  • Detachable microphone – you can use your favorite microphone or headset instead
  • The easiest way to record and send the music or sound by E-mail.
  • Just one button does all the job - records the message and puts the link to it into the E-mail ready to be send.
  • Short-time and long-time recording buttons.
  • Computer interface through USB-port.


  • The software "E-MIC monitor" supports the following features:
  • 1. Any of the 2 buttons can be assigned the function of
  • sending the E-mail immediately or recording the
  • sound for future usage.
  • 2. Recorded files management
  • 3. Optional compact MPEG Layer-3 sound compression.
Specifications
Specifications
Microphone:
Type: Omni-directional mono
Sensitivity: - 40dBV/Pa
Frequency: 100 – 16kHz
Microphone input (mono):
Frequency: 50 – 20kHz
Resolution: 16 bit
Sampling rate: 48 kHz
SNR: 83dBA
THD+N: -42dB
Line input (stereo):
Frequency: 20 – 20kHz
Resolution: 16 bit
Sampling rate: 48 kHz
SNR: 89dBA
THD+N: -76dB
Headphones/Line output(stereo):
Frequency: 20 – 20kHz
Resolution: 16 bit
Sampling rate: 48 kHz
Output power: 50mW (at 32 Ohm)
Load impedance (min): 16 Ohm
SNR: 96 dBA
THD+N: -48dB
Connectors:
USB A-type male
3,5 mm stereo headphone jack
3,5 mm mono electret microphone input jack
3,5 mm line-in jack
System requirements
PC: Pentium 133 MHz or higher. Windows 98/ME/2000/XP/2003
MAC: PowerMAC G3 or better, MacOS 10.3 or later, QuickTime 6.5.1 or later
Free USB 1.1 port
Packing details
Q'ty in crtn, pcs40
Crtn volume, CUM0.09324
Crtn weight, kgs13.6
Carton size LxWxH:700x360x370 mm
Country of originCN
Barcode8716309040624
Customs code8518309590
